The roads package offers iterative least cost path and minimum
spanning tree methods for projecting forest road networks. The methods
connect a set of target points to an existing road network using igraph
https://igraph.org to
identify least cost routes. The cost of constructing a road segment
between adjacent pixels is determined by a user supplied
weightRaster
and a weightFunction
; options
include the average of adjacent weightRaster
values, and a
function of the elevation differences between adjacent cells that
penalizes steep grades. These road network projection methods are
intended for integration into R workflows and modelling frameworks used
for forecasting forest change, and can be applied over multiple
timesteps without rebuilding a graph at each timestep.
You can install the released version of roads from CRAN with:
install.packages("roads")
And the development version from GitHub with:
# install.packages("devtools")
::install_github("LandSciTech/roads") devtools
To simulate the development of roads three inputs are needed: the
current road network, the locations that should be connected to the road
network (landings), and a weights raster that together with the
weighting function determines the cost to connect two raster cells with
a road. Typically the roads and landings are sf
objects or
sp
Spatial* objects and the weight is a raster.
library(roads)
library(raster)
# data set installed with roads package
<- prepExData(demoScen)
demoScen <- demoScen[[1]]
scen

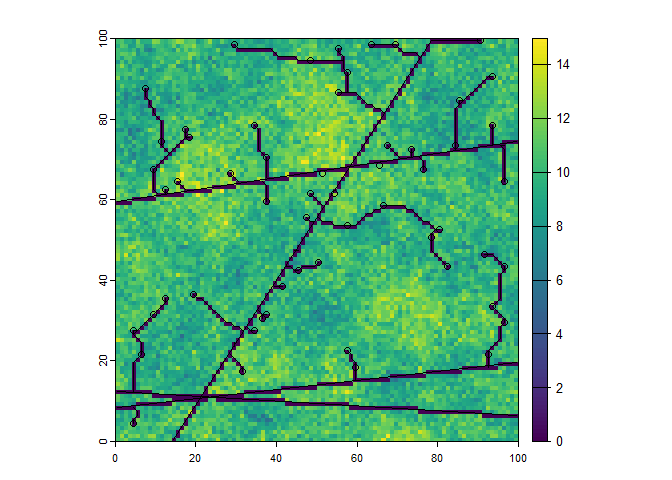

<- projectRoads(landings = scen$landings.points,
prRoads weightRaster = scen$cost.rast,
roads = scen$road.line,
plotRoads = TRUE)
By default projectRoads
uses an iterative least cost
paths algorithm (roadMethod = "ilcp"
) to connect each
landing to the existing road by the lowest cost path, updating the cost
after each landing is connected. A minimum spanning tree method
(roadMethod = "mst"
) is also available.
For more details see
vignette("roads-vignette", package = "roads")
